Description

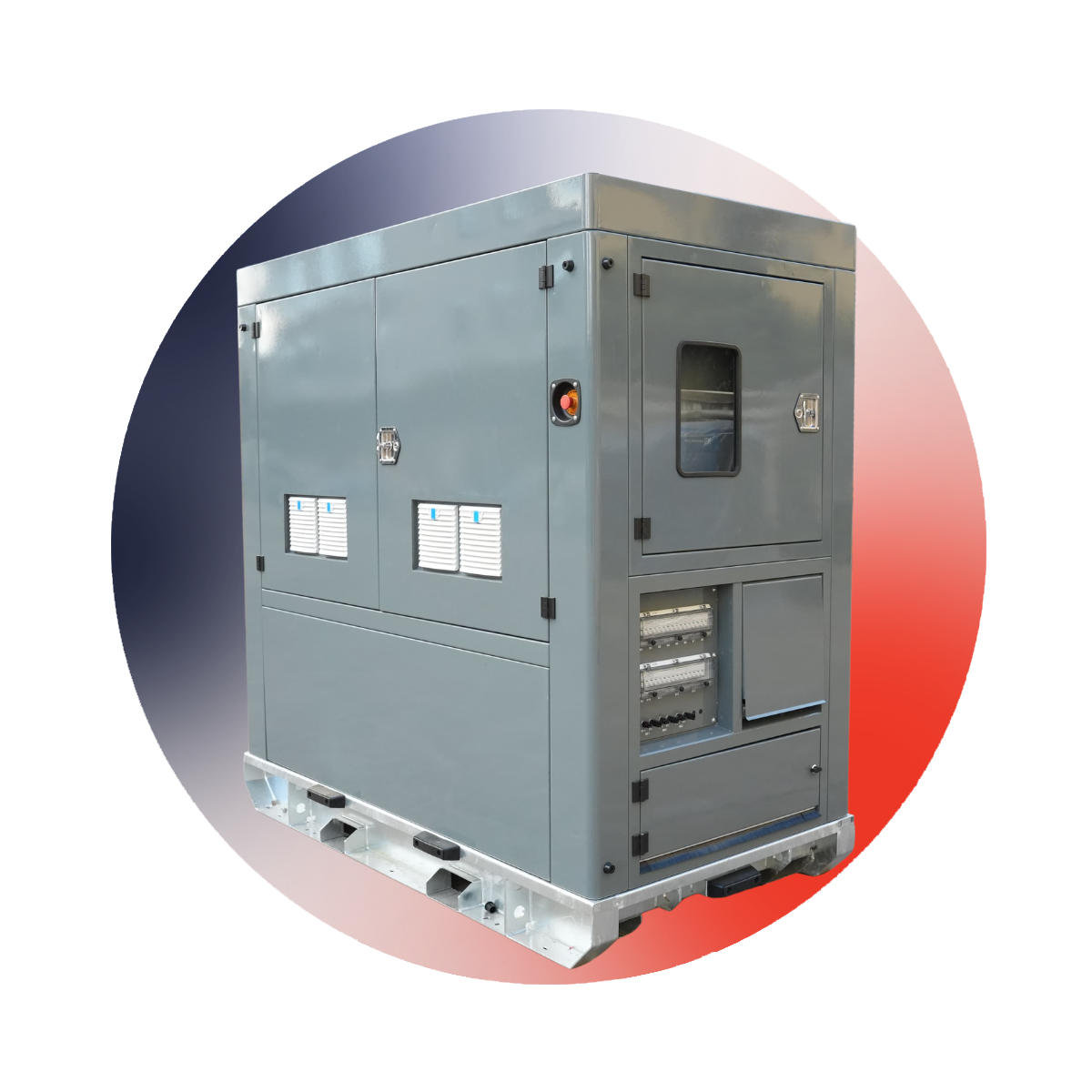

45 kW / 145 kWh Battery Energy Storage System (Rental/Construction Type)

The 45kW/145kWh Battery Energy Storage System (BESS) is a heavy-duty energy storage solution designed for rental and construction applications. The system combines 144.6 kWh of nominal LFP (LiFePO₄) battery capacity with a Victron inverter system to provide dependable stored power for temporary, mobile, and hybrid power applications. The battery system features integrated heating and a listed design life of 10+ years.

The inverter system consists of three Victron Quattro 15 kVA inverters, providing 45 kVA total inverter capacity and 480 VAC, 3-phase output. The system is equipped with a Victron Touch 70 display, 4G cellular and Wi-Fi-compatible connectivity, and smartphone monitoring and control for convenient system management.

Designed with rental and construction use in mind, the BESS features heavy-duty 400A Cam-Lock connections for PowerAssist input, charging input, and 480V 3-phase output. Its busbar is compatible with both shore power and generator power, allowing the battery system to be incorporated into hybrid power configurations.

At a 36 kW rated load, the system provides an approximate runtime of 3.6 hours. Integrated climate control includes a 1500W heating and cooling unit, while the heavy-duty hot-dip galvanized steel skid, integrated forklift pockets, and internal/external anti-corrosion powder coating support transportation and demanding worksite use.

For applications incorporating renewable energy, optional solar integration is available. The spec sheet lists an optional solar MPPT controller package with two 100A Victron MPPT controllers for an additional $880.

Request a Quote.

Key Features

• 45 kVA Total Inverter Capacity
• 144.6 kWh LFP (LiFePO₄) Battery
• 3 × Victron Quattro 15 kVA Inverters
• 480 VAC, 3-Phase Output
• Approx. 3.6-Hour Runtime @ 36 kW
• 400A Cam-Lock Connections
• Generator & shore power compatible
• 4G + Wi-Fi connectivity
• Smartphone monitoring & control
• Integrated heating & climate control
• Heavy-duty galvanized skid with forklift pockets
• Optional Solar Integration

Why Choose Battery Energy Storage?

• High-Capacity LFP Storage: Provides 144.6 kWh nominal capacity using LFP (LiFePO₄) battery chemistry with a listed 10+ year design life.
• Victron Power System: Three Victron Quattro 15 kVA inverters provide a combined 45 kVA inverter capacity with 480V three-phase output.
• Built for Rental & Construction: A hot-dip galvanized steel skid, forklift pockets, anti-corrosion coating, and integrated climate control make the system well suited to demanding temporary-power environments.
• Generator Integration: Generator and shore-power compatibility makes the BESS suitable for hybrid systems where stored battery energy can work alongside conventional power sources.

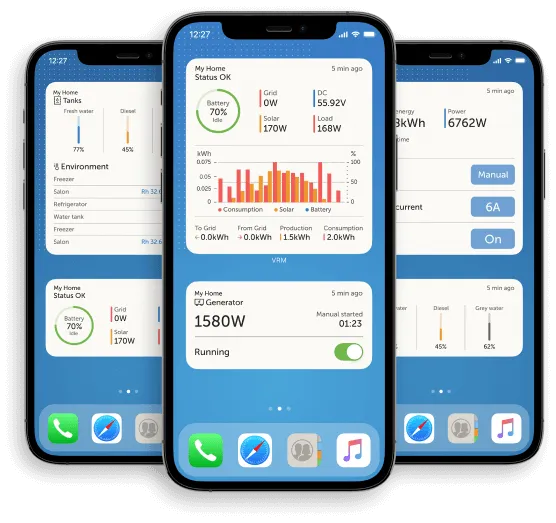

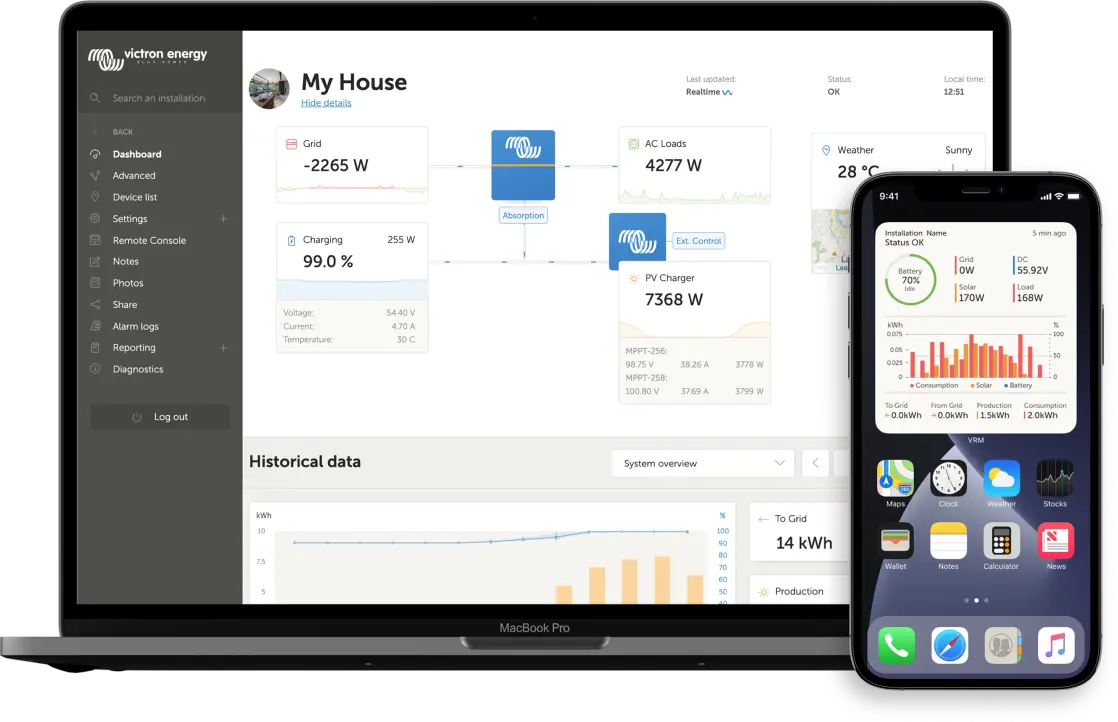

• Remote Monitoring: 4G cellular, Wi-Fi compatibility, Victron Touch 70 display, and smartphone control provide convenient access to system monitoring.

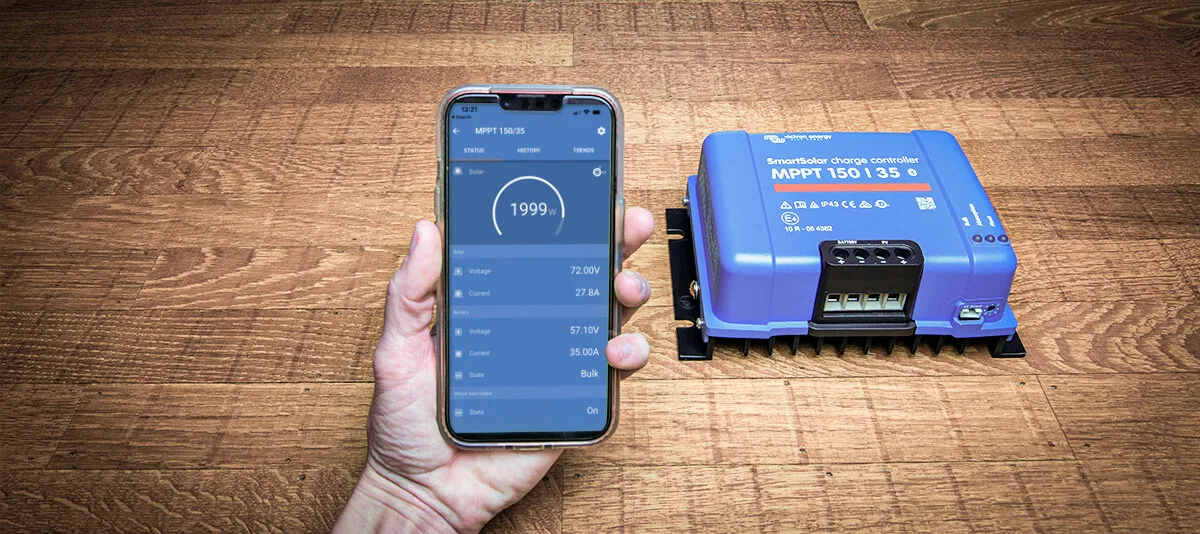

• Solar Ready: Optional solar integration expands the system’s charging options, with dual 100A Victron MPPT controllers listed as an available add-on.

Common Applications

• Construction sites
• Equipment rental fleets
• Temporary and mobile power
• Generator + battery hybrid systems
• Peak-load support
• Jobsite power
• Events and temporary facilities
• Remote worksites
• Shore-power-supported applications
• Solar + battery power systems
• Applications seeking to reduce generator runtime

Need Help Choosing the Right Model?

Visit our Ultimate Diesel Generator Buyer’s Guide for tips on sizing, installation, and voltage selection. Our guide makes it easy to find the best generator for your power needs.

Contact Us

Phone: 423.220.3500
Email: sales@wholesale-generators.com

Warranty & Lead Time

Lead Time: 90 Day Delivery Estimate – Call to see if this product is in stock
Warranty: 2 Years / 2000 Hours on parts

Every product is tested before shipping.
